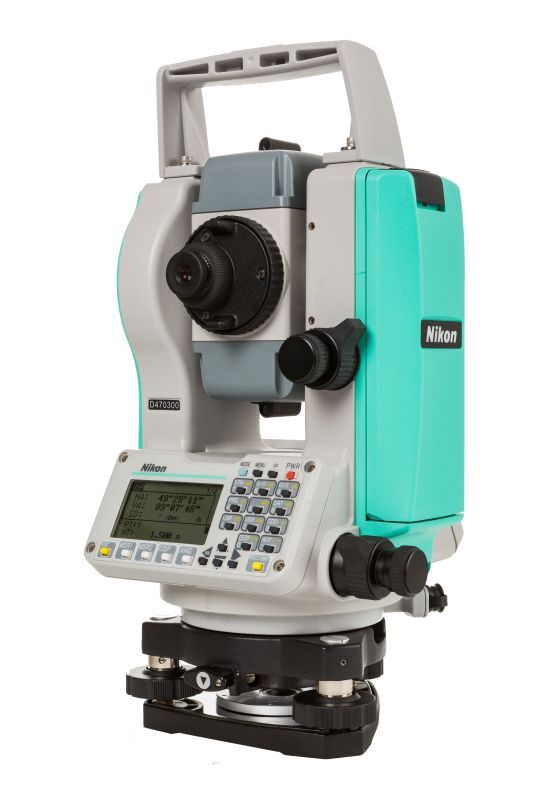

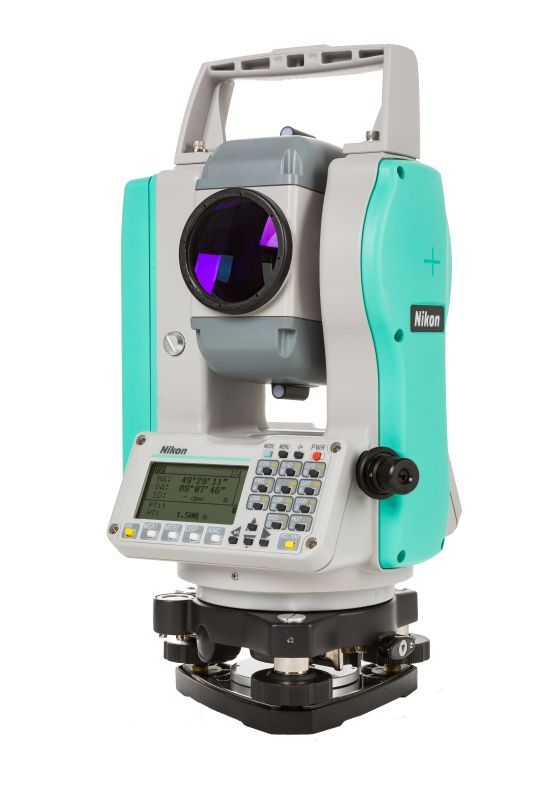

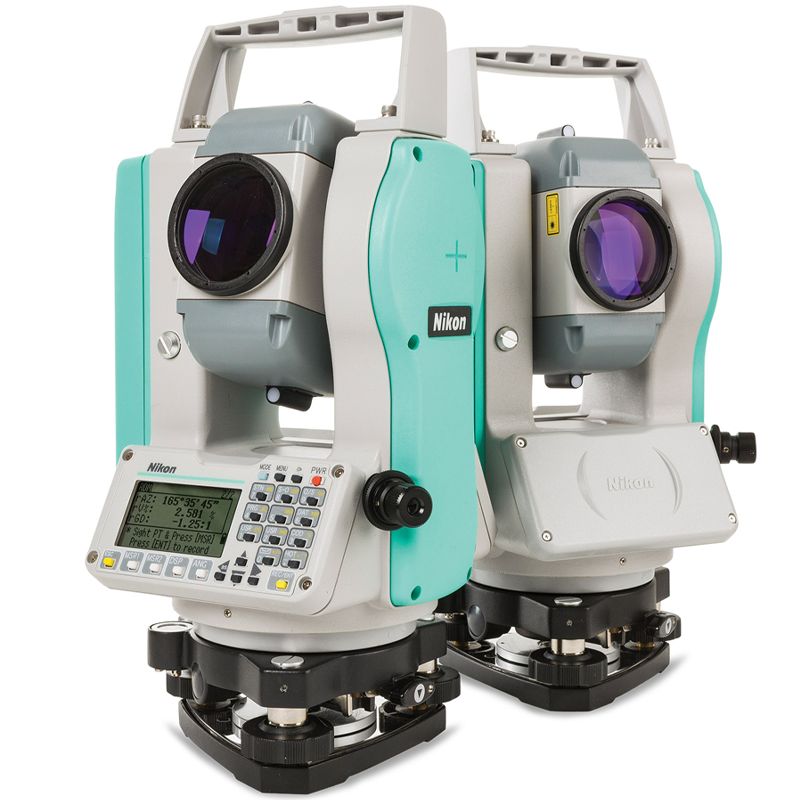

Nikon N Series Total Station

The Nikon N Series Total Station delivers dependable performance with fast EDM technology, dual-face displays, and reflectorless measurement up to 600 meters. Available in 2" and 5" angular accuracy models, the Nikon N is engineered for both prism and reflectorless workflows, giving field crews flexibility on every job. With 30x magnification Nikon optics, a coaxial laser pointer, and Bluetooth® connectivity, the N Series helps you collect and transfer data quickly and efficiently.

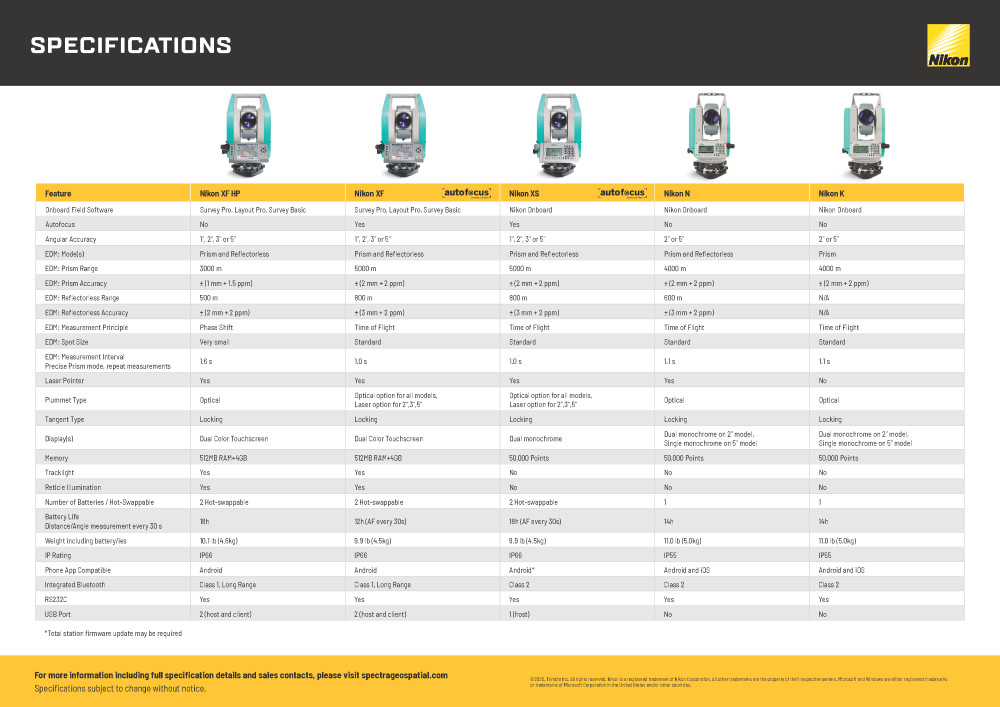

Unlike the Nikon K Series, which is prism-only and limited to a single display, the N Series includes reflectorless EDM, a dual-backlit LCD, and a Class 2 coaxial laser pointer for faster targeting. It also supports the Total Station File Transfer app for wireless communication between field and office via smartphone.

Key Features:

• Reflectorless Range: Up to 600 m (1968 ft)
• Prism Range: Up to 4,000 m (13,123 ft)
• EDM Accuracy: ±(2+2 ppm × D) mm (prism), ±(3+2 ppm × D) mm (reflectorless)
• Angle Accuracy: 2" or 5" models available
• Laser Pointer: Coaxial Class 2 red laser

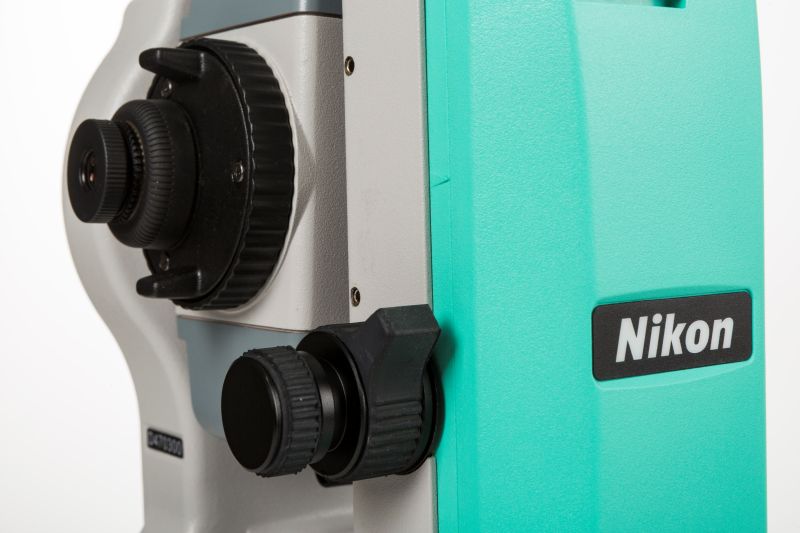

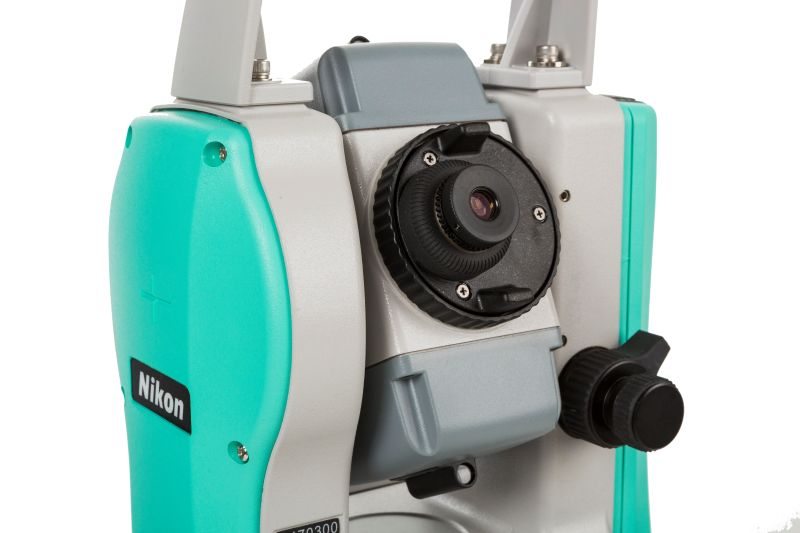

• Optics: 30x magnification with 1°20′ field of view
• Tilt Compensation: Dual-axis, ±3′ range

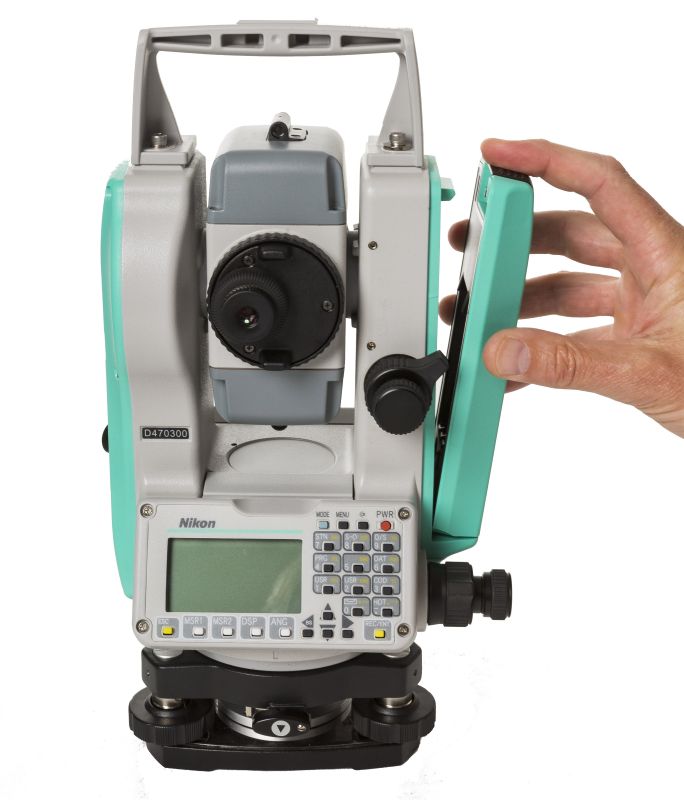

• Battery Life: Up to 22 hours (angle mode), 14 hours (30-second interval mode)
• Point Storage: 50,000 records
• Wireless: Integrated Bluetooth and NFC pairing

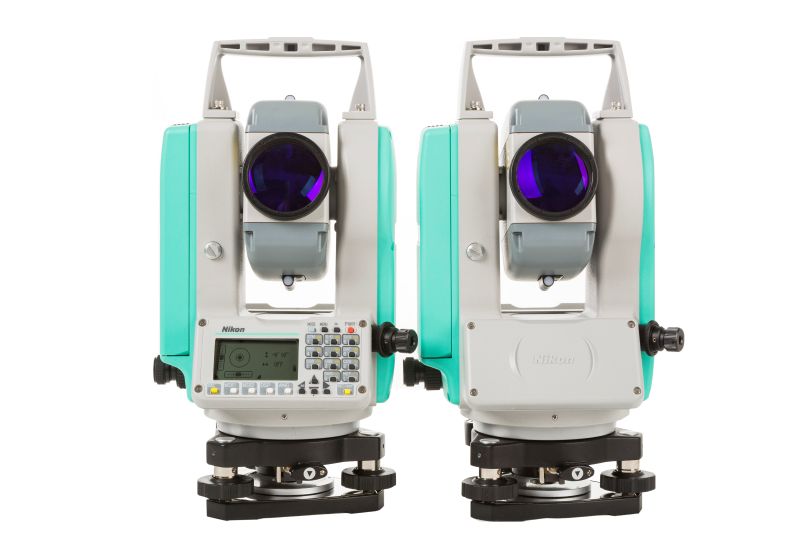

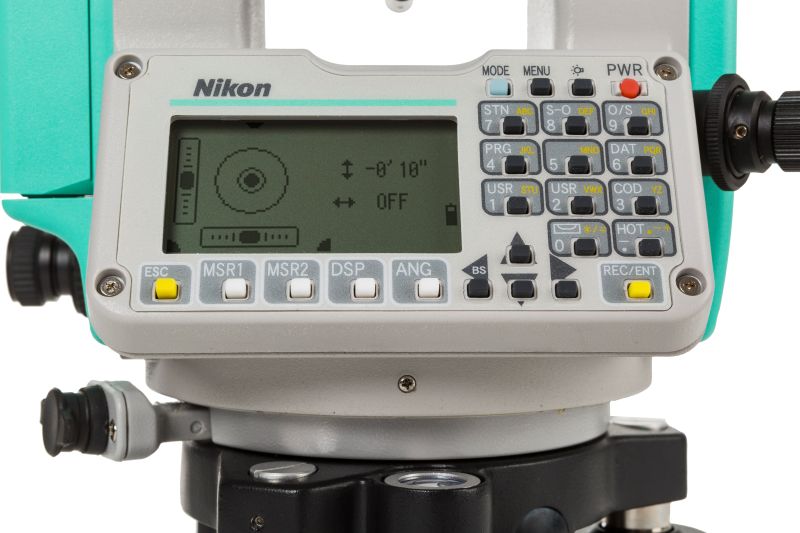

• Display: Dual graphic LCDs (2" model); Single display (5" model)
• Protection: IP55 rated for dust and water

With practical charging via USB-C, rugged IP55 housing, and long battery life, the Nikon N Series is perfect for general construction, site layout, and control surveys—especially for crews needing prism and reflectorless versatility in a durable, user-friendly instrument.

What's Included

• Calibration Certificate
• Tribrach - (HWB10006)

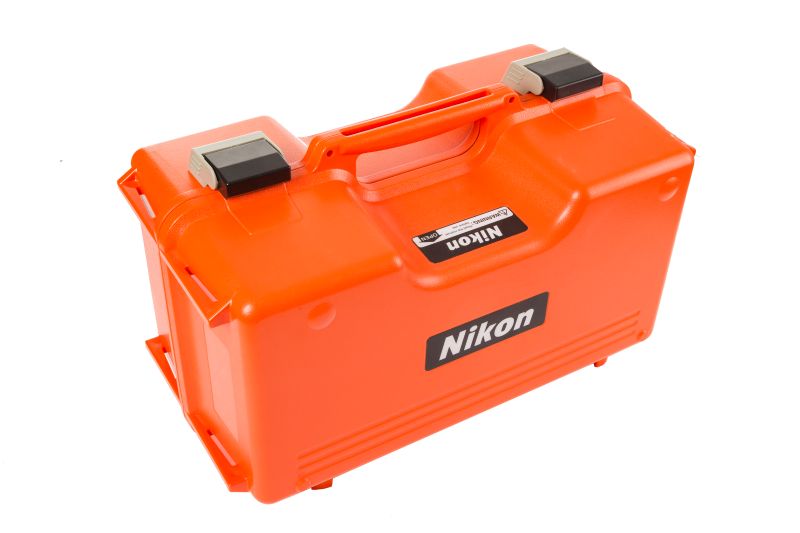

• Hard plastic carrying case - (HQU98000)
• Shoulder strap for case

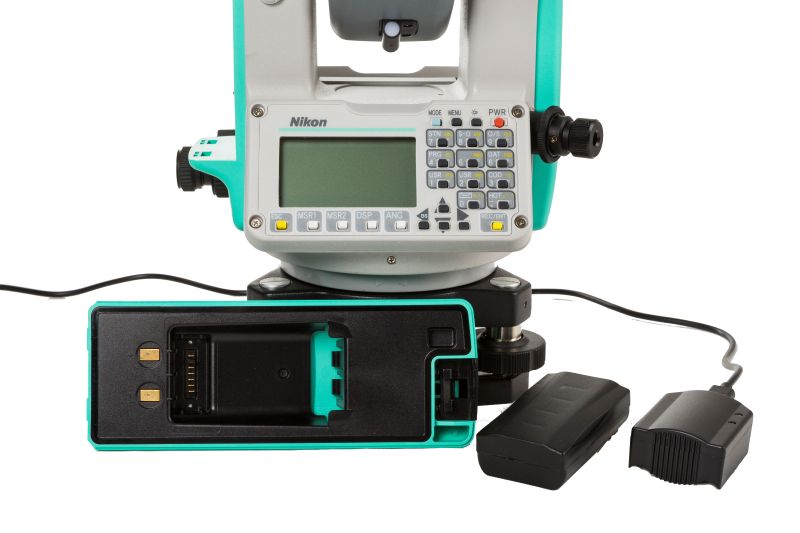

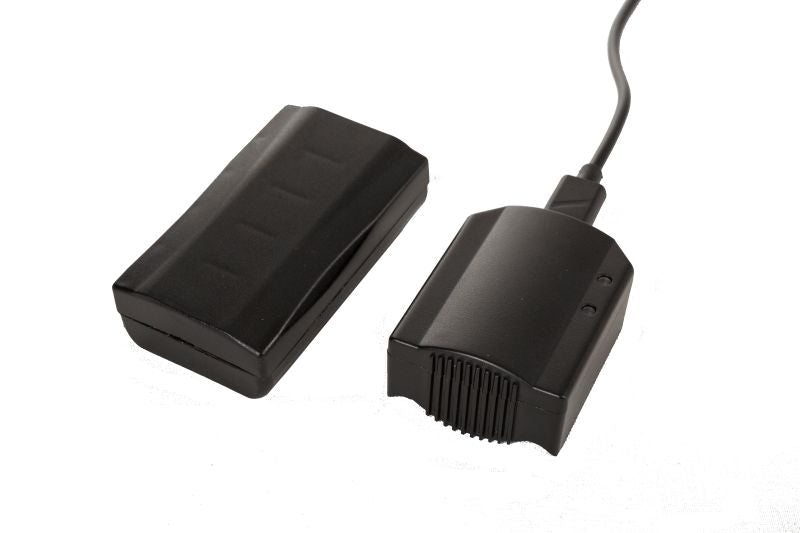

• Li-ion long-life battery - (67201-01-SPN)
• Single-slot USB battery charger - (HQJ50000)
• USB charging cable
• Rain/dust cover
• Lens cap
• Adjustment pin tool
• Allen wrench
• Warranty Card, Quick Start Guide, and Instrument Certificate
